Specifications...

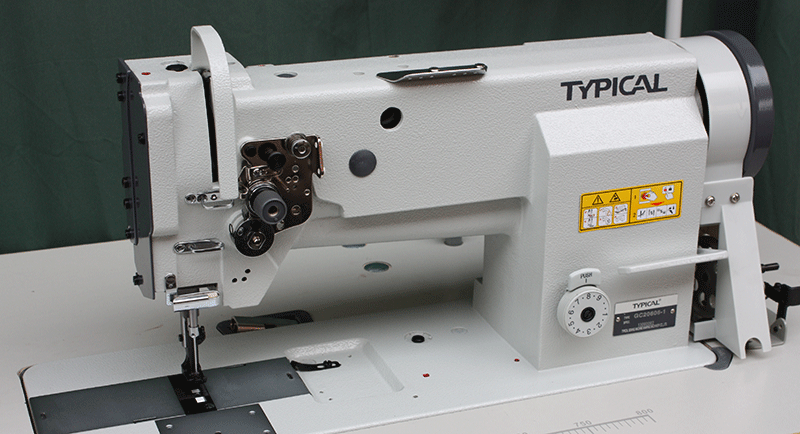

Typical compound feed.Load bobbin industrial sewing machine Budget Priced

Top load large bobbin.

Auto lubrication

Stitch length to 9mm

Designed to do a days work everyday.

Compound Feed Camsew Typical GC20606 Auto Lubrication
Typical long arm industrial sewing machine Typical compound feed walking foot industrial sewing machine Typical long arm walking foot
Typical long arm industrial sewing machine Typical long arm walking foot  Typical compound feed

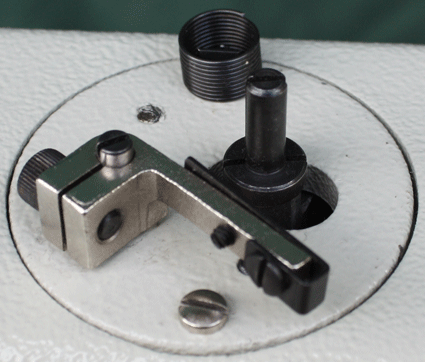

Built in bobbin winder Bobbin Case, and Large Bobbin 28 X 12mm  Stitch Length to 9mm
Typical compound feed.Load bobbin industrial sewing machine
Price includes delivery, set up, 12 months on site warranty.
(Melbourne Metropolitan Area)

All other areas a $100.00 discount towards freight.

 12 months return to point of purchase for warranty claims.

 GC20606 2 Needle

$2,500.00 + GST

GC20606-1  1Needle

$2,000.00 + GST (Old Price)


Specifications for all GC20606 Standard Arm Models

Stitch
Drive Stitch Length Bobbin Feeding RPM Work Area Foot Lift Lubrication Needle All Threads Up To.
Lock Stitch Ho Hsing
Servo via Belt
0-9
 mm
Large 28X12mm Compound Feed 1200 250X100mm 13 mm Foot Pedal  Auto 135X17
(DPX17)
M20

Specifications for GC20606-L18 Specific Models
Model  Single Needle
Dual
Needle
Auto Thread Trim Auto Reverse Work Area Height Work Area
Length
GC20606.1L18         150mm 457mm
GC20606.L18       150mm 457mm
GC20606.1L18.D2T3     150mm 457mm
GC20606.L18.D2T3   150mm 457mm
GC20606.1HL18       150mm 457mm
C20606.HL18       150mm 457mm
GC20606.1HL30.T3       150mm 700mm
GC20606.HL30.T3   150mm 700mm
GC20606.1HL30.T3   150mm 700mm
GC20606.HL30.T3     150mm 700mm
GC20606.HL40.T3   150mm 1016mm
