SEW UNIQUELY
Heavy Duty Cylinder Arm Sewing Machines.
| Model | Description | |
 |

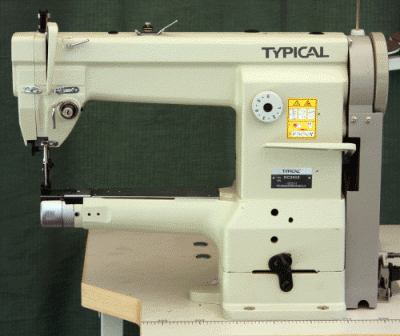

GC2603 GC2605 |
GC2063 Cylinder arm, walking foot
compound feed, side load bobbin. GC2605 Same as above, with sync. binder. With Ho Hsing servo G60 motor. More... |
 |

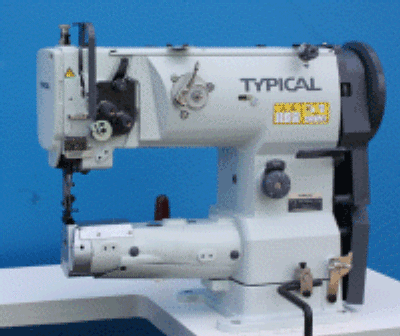

GC2263-1B |
Cylinder arm, Walking Foot Compound Feed, Top Load Bobbin. Auto lube. More... |
 |

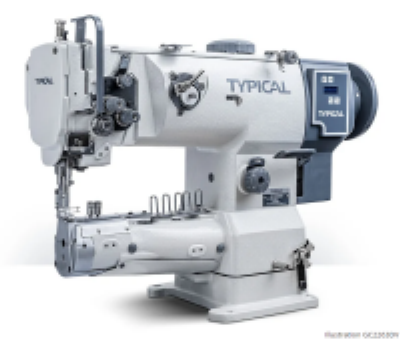

GC2263D |
Same as GC2263-B Direct drive, climbing device. More... |
 |

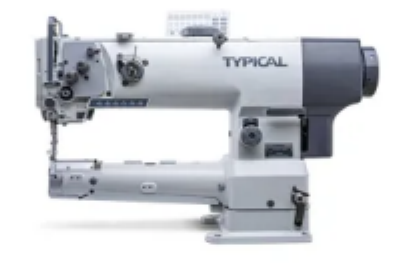

GC2263L14D-3T4 |
Fully automatic long arm. More... |
 |

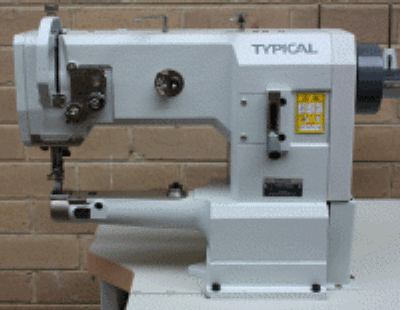

TW3-P335-VB |
Cylinder arm, synchronised binder, large bobbin. More... |
 |
TW3-441 |
Extra heavy duty long cylinder arm, with Ho Hsing motor, speed
reducer, choice of bench. Also available extra long arm cylinder. More... |
 |
CAMSEW GA-205 |
Extra heavy duty long cylinder arm, with Ho Hsing motor. More... |
Comparison, and Specifications.
All prices a guide only and subject to change without notice
| Model | Automatic | Stich Type | Thread Size | Drive | Stitch Length | Bobbin | Feeding | RPM | Foot Lift | Work Area | Lubrication | Needle |
|
GC2603 GC2605 Binder |
Lock Stitch | M20 | Servo Belt | 0-6 mm | Large 25X11mm |
Walking foot Compound feed |
1800 | 13 mm Knee Press | 260 X 120mm | Manual | 135X17 DPX17 | |
| GC2263D | Servo direct | Large 26X11mm | 2500 | 18mm Knee Press | 260 X 110mm | Auto Sump | ||||||
| GC2263-1B | 0-8mm |
Extra
Large 29X12mm |
||||||||||
| GC2263-1B-D2T3 |
 |
18mm Pneumatic | ||||||||||
| GC2263L14D3T4 | 0-6mm | Large 26X11 | 365X110mm | |||||||||
| TW3-441 | M8 | Servo Belt | 0-11mm | Large Shuttle | 800 | 20 mm Knee Press | 420 X 200mm | Manual | DYX3 | |||
| GA-441-1 Long Arm | Servo Belt | 800 | 20 mm Knee Press | 640 X 200mm | ||||||||
| Motor | Drive | Type | Output Power | Amps | RPM | Made In | ||||||
| Ho Hsing Servo Belt |
|
Servo |
600 Watts 0.75 HP |
0.3 | 2500 adjustable. | Taiwan | ||||||
| TYPICAL Direct |
|
850 Watts | China |
