  GC20665L14-D2T4 Automatic Thread Trim and Reverse, Direct Drive Long Arm, Walking Foot Compound Feed, Top Load Bobbin.

Fully Automatic, Single Needle, Direct Drive, Walking Foot, Side Load Bobbin.

HOW to PURCHASE....

Specifications...


GC20665L14D See The Non Auto in Action....

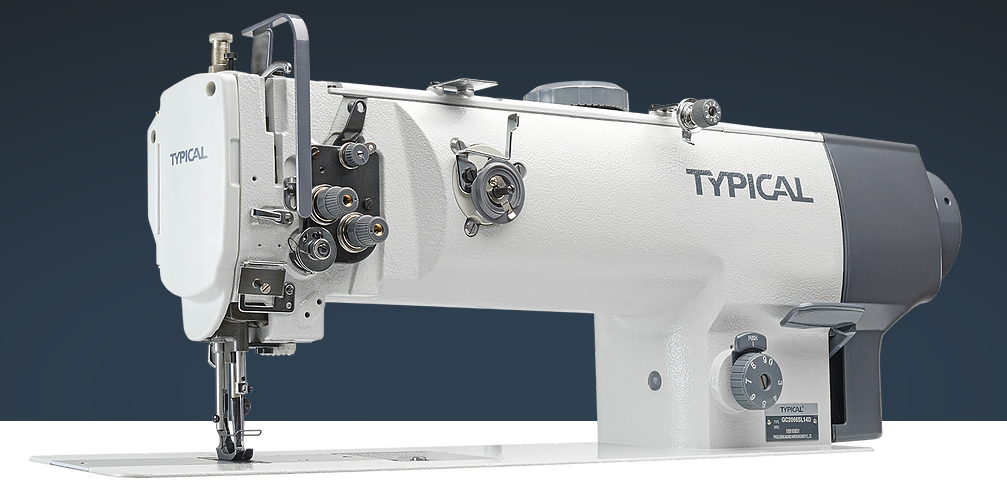

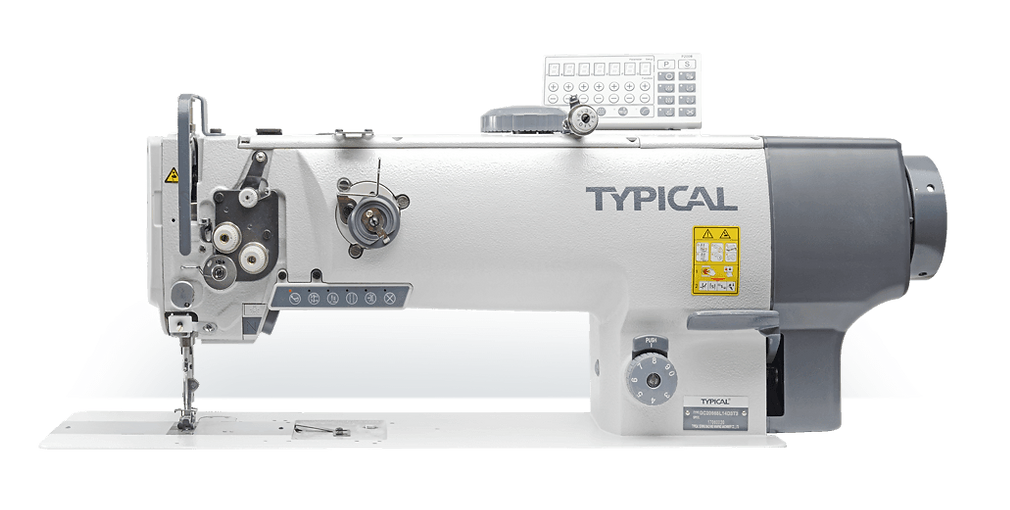

GC20665L14-D2T4 Fully Automatic & GC2066L14-D2T4 Twin Needle Fully Automatic.
Integrated European design concept.
High torque servo direct drive motor, delivers power (750 Watts), and excellent control at low speed, top speed (2500 RPM.)
Led light, dimmable to suit operator needs. Handy quick reverse switch, and needle position.
Electronic thread nipper to reduce bird's Nest at start.
9mm stitch length, with stitch length lock to provide stable stitch length.
Full featured control panel for automatic stitches. Plus sub control panel in easy reach, and knee press control for auto switching.
Climbing device, auto switching to increase foot climb for cross seams. Second thread tension switches on for thick heavy material.
Built in bobbin winder, and automatic lubrication.

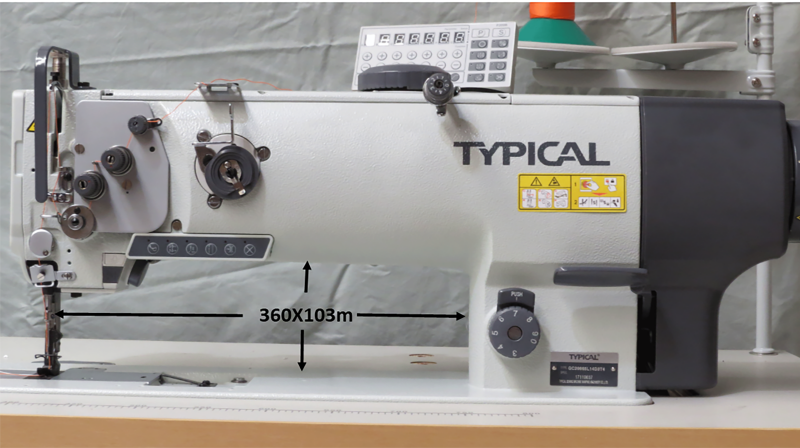

Throat size 360 mm x 103 mm. (The area to the right of the needle)
Automatic foot lift pneumatic.
SEAMS UNIQUELY   .
Prices are a guide only, and subject to change.
Walking Foot
Compound Feed
Full Featured Control Panel.		 Easy to Adjust Climbing Device




1: When switched on you can increase or decrease the foot lift for cross seems via the knee press..

2: Auto back tack select.

3: Half stitch switch, can be used when you want to make one stitch.

4: Increases the motor force.

5: Second tension release.

6: Safety switch.

7: Electronic Hand Wheel. Manual precise needle position. Also quick cancel.

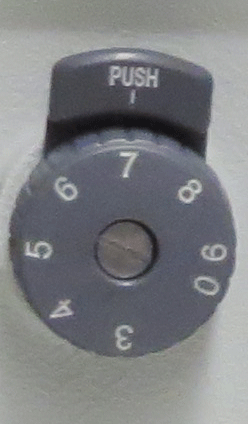

Built in bobbin winder Ideally positioned sub panel for frequent stitch settings Stitch Length to 9mm
with locking device

HOW to PURCHASE....
Model  Needles Type Feed Type Thread
Size 		 Stitch Stitch Length Bobbin Winder RPM Foot Lift Work Area Needle Made In
GC20665L14-D3T4 Single Fully Auto. Walking Foot
Compound Feed		 M20  Lockstitch  0-9 mm  Large 28X11mm  Built In 2500  25 mm Auto Pneumatic. 360 X 103 mm   135X17
DPX17 		 China
GC20666L14-D3T4 Twin
GC20665L14D Single Non Auto. 16 mm Knee Press
Motor Type Output Power Amps RPM Made In
Typical Servo Direct Drive, with needle positioning. 750 Watts
0.75 HP		 0.3 2500 adjustable. China

Automatic Model  Thread Trim Back Tack 2 Start/Finish Back Tack 4
Start/Finish		 Lock
Settings		 Max. Tack
Stitches

Programmable

Turn on/off
Trim
6 Bar Tack
 Reverse
Switch		 Change Needle
up/Down
GC20665KL14-D3T4
GC20666L14-D3T4
