download catalogue the Typical walking foot

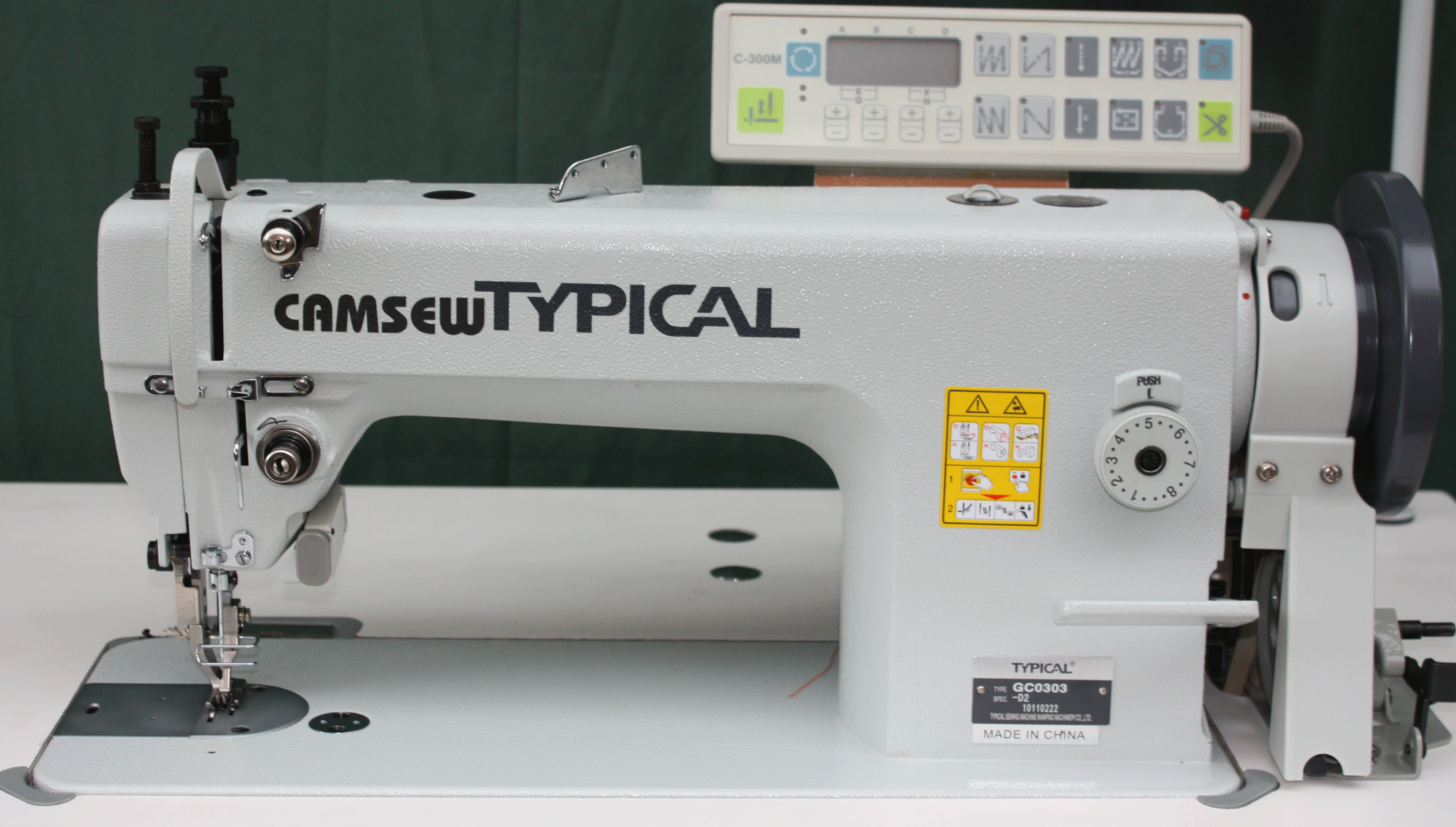

 GC0303-D2 Walking Foot, Side Load Bobbin.

Auto Thread Trim, Full Featured Control Panel.

Complete with bench, Ho Hsing servo motor.

Specifications...

Typical automatic industrial sewing machine Ho Hsing Servo electronics.

Auto thread trimming.

Full featured Control Panel.

Side load bobbin no need to remove work to change

Auto lubrication

Stitch length to 8mm

Designed to do a days work everyday.
Walking Foot Typical GC0303-D2 Walking Foot Auto Lubrication
Walking foot standard feet extras available, piping, double piping, zip foot, top stitch, etc. Typical walking foot with auto thread trim and full featured control panel Auto lubrication from sump

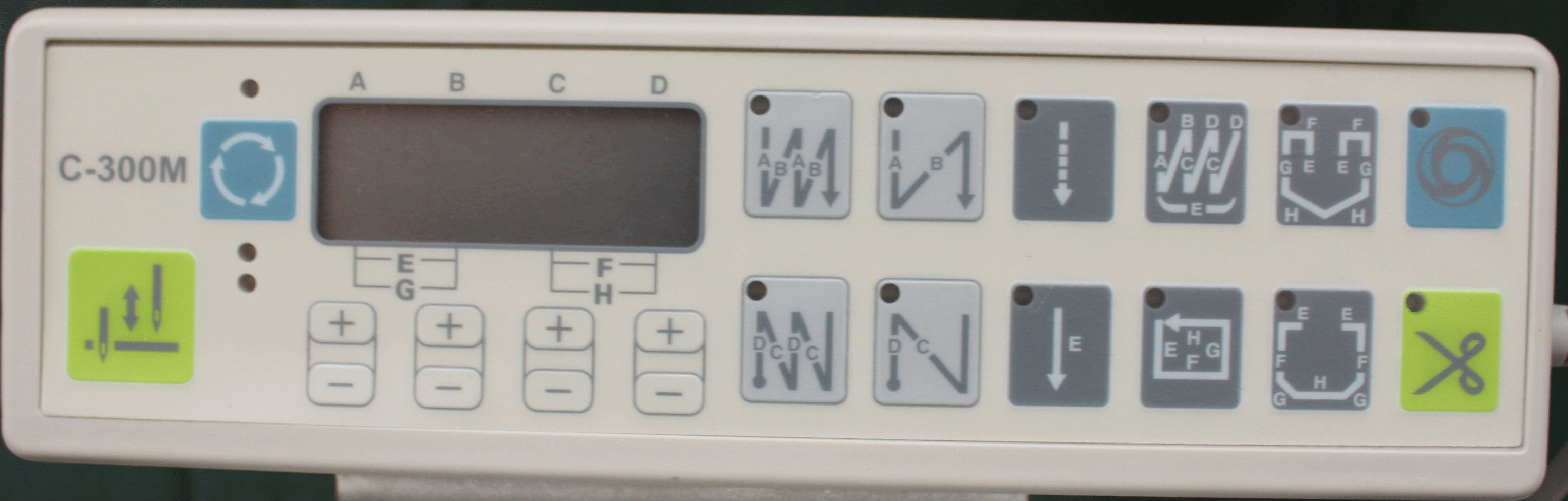

control panel for typical auto thread trim

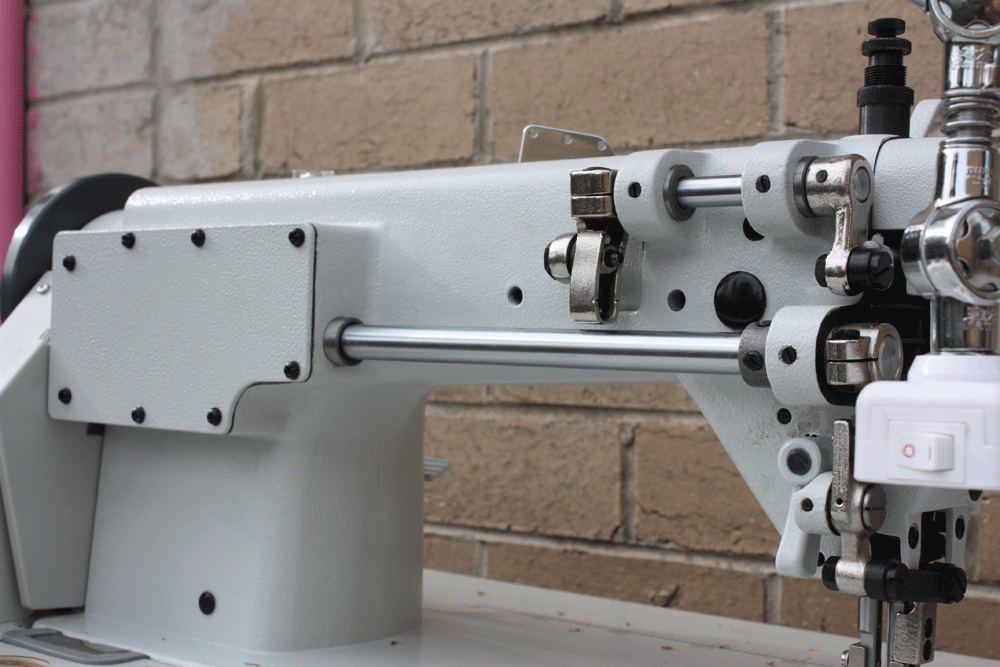

Camsew GC0303CX Rear
Price includes delivery, set up, 12 months on site warranty.
Melbourne Metropolitan Area.

All other areas a discount towards freight.

 12 months return to point of purchase for warranty claims.

GC0303-D2 Auto. Thread Trim

$2,250.00 + GST


Options

Puller with top and bottom roller feed More...   $1,500.00 + GST Package deal with machine.

Piping Feet sizes 1/8" to 1", Half foot for zips etc. Top stitch foot

Bench mounted Newbrain led light $50.00 + GST When purchased with machine

Australian made benchtop.

Model  Thread
Size 		 Stitch Stitch Length Bobbin Feeding RPM Foot Lift Work Area
Bed Dimensions
 Needle Made In
GC0303-D2 M20  Lockstitch  0-8 mm  Large 25X11mm  Walking Foot  2000  16 mm Knee Press  27 X 13 cm   48 X 18
cm 		 135X17  China
Motor Model Type Volts Output Power HP RPM Made In Price + GST
Ho Hsing i90M-4-21-220 Servo 200-240 600 Watts 0.8HP 3000 Taiwan Included
